THE BULGARIAN DIAMOND TOOLS

Marble, limestone and travertine
cutting diamond segments for circular saw blades

All our diamond segments are sintered metal bond type.

They are produced for wet cutting and silver alloy brazing only.

The following specification & drawings are for reference only; other sizes or design can be ordered by the customer.

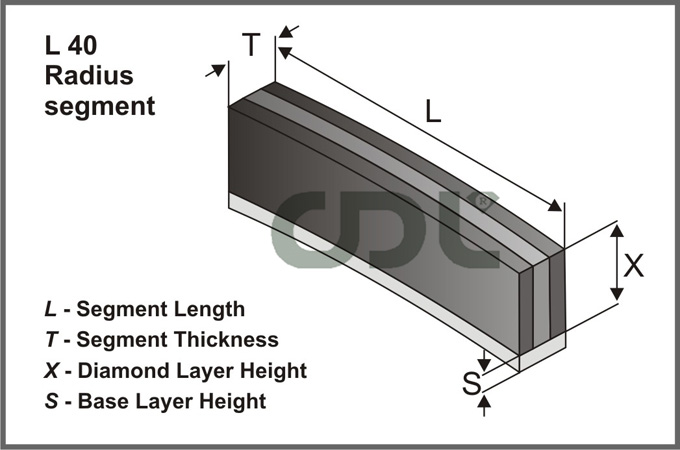

1. L40 standard types of radius diamond segments available
for small (250 - 800 mm) circular saws.

These diamond segments for small circular saw blades are designed for fine and fast slab edge cutting of
marble (M), limestone (L) and travertine (TR).

SCS01 SCS02 SCS03 SCS04

No.

Diameter

Segment dimensions (mm)

Number of segments

	(mm/inch)	L	T	X	S **	(pcs/set)
1	250 / 10	40	2.4	7 / 9	2	17
2	300 / 12	40	2.8	7 / 9	2	21
3	350 / 14	40	3.2	7 / 9	2	24 / 25
4	400 / 16	40	3.6	7 / 9	2	28
5	450 / 18	40	4.0	7 / 9	2	26 / 32
6	500 / 20	40	4.0	7 / 9	2	30 / 36
7 *	600 / 24	40	5.0	7 / 9	2	36 / 42
8 *	650 / 26	40	5.5	7 / 9	2	39 / 50
9 *	700 / 28	40	5.5	7 / 9	2	40 / 50
10 *	800 / 32	40	6.0	7 / 9	2	46 / 57

* Marked segments are three-layer sandwich type

** 2 mm base layer can be added for good radius grinding and perfect brazing

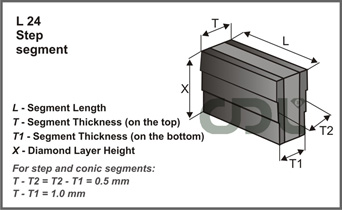

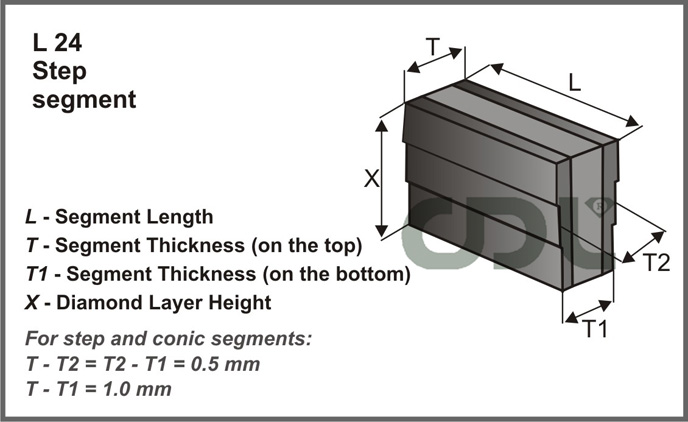

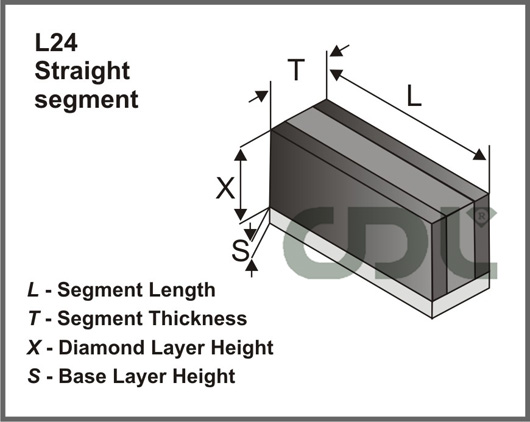

2. L24 straight standard and step types of diamond segments available
for big (900 - 2500 mm) circular saws.

These diamond segments for big circular saw blades are designed for cutting of
marble (M), limestone (L) and travertine (TR).

BCS01	BCS02	BCS03	BCS04
BCS05	BCS06	BCS07	BCS08

No.

Diameter

Segment dimensions (mm)

Number of segments

	(mm/inch)	L	T	X	S *	(pcs/set)
1	900	24	8.0	9	2	64
2	1000	24	8.0	9	2	70
3	1200	24	8.5	9	2	80
4	1250	24	9.0	9	2	82
5	1300	24	9.0	9	2	88
6	1600	24	10.5	10	2	104 / 108
7	1700	24	10.5	10	2	108
8	1800 / 26	24	11.0	10	2	112 / 120
9	2000 / 28	24	11.0	10	2	128 / 132
10	2500 / 32	24	12.5	10	2	140

* 2 mm base layer can be added for good grinding and perfect brazing
