Granite and gneiss cutting diamond segments for circular saw blades
All our diamond segments are sintered metal bond type.
They are produced for wet cutting and silver alloy brazing only.
The following specification & drawings are for reference only; other sizes or design can be ordered by the customer.
1. L40 standard types of radius diamond segments available
for small (250 - 800 mm) circular saws.
These diamond segments for small circular saw blades are designed for fine and fast slab edge cutting of
granite (GR) and gneiss (GN).
|
|
* Marked segments are three-layer sandwich type
** 2 mm base layer can be added for good radius grinding and perfect brazing

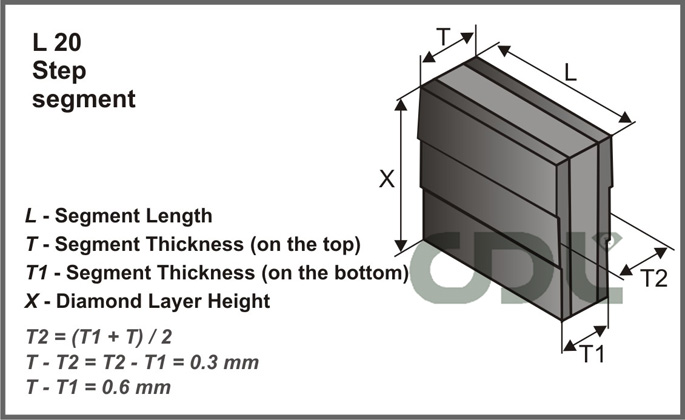

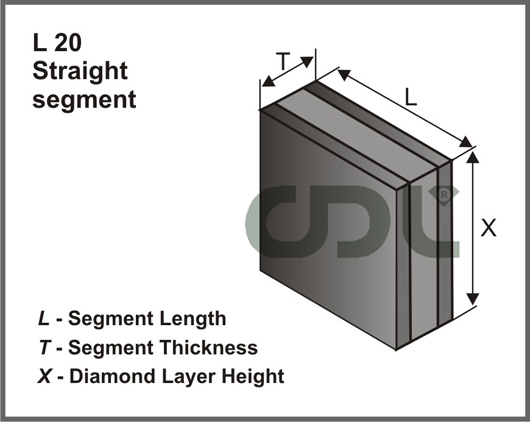

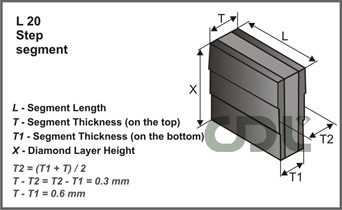

2. L20 standard types of diamond segments available
for small (250 - 800 mm) circular saws.
|
|
 |
 |
 |
 |
* Marked segments are three-layer sandwich type
** Valid for step type segments only

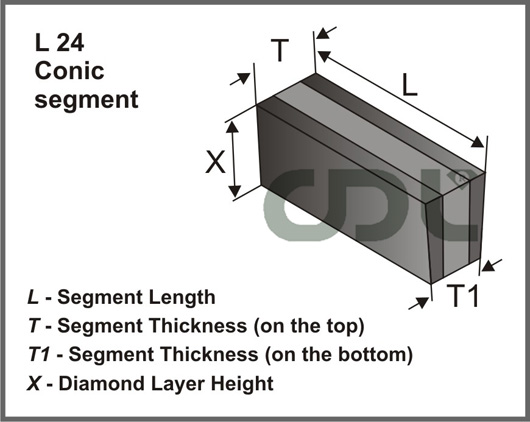

3. L24 standard types of diamond segments available
for big (900 - 2500 mm) circular saws.
These diamond segments for big circular saw blades are designed for cutting
granite (GR), rhyolite (R) and basalt (BS).
|
|
 |
 |
