БЪЛГАРСКИТЕ ДИАМАНТЕНИ ИНСТРУМЕНТИ

Z

OD (mm)

SD (mm)

WT (mm)

R (mm)

B 5

24

76

56.30

8.45

5.50

B 10

20

76

40.30

9.40

10.50

B 15

18

88

43.20

14.40

15.50

B 20

20

96

42.40

19.45

20.50

B 25

20

109

48.30

24.15

25.50

B 30

12+12

109

35.00

29.15

30.50

B 40

18

126

42.00

37.00

40.00

Z

OD (mm)

SD (mm)

WT (mm)

Angle (°)

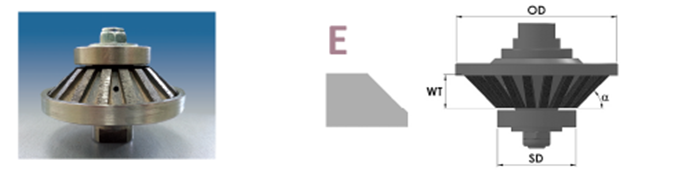

E 5 BG

20

88

69.0

5.3

45

E 5

20

76

57.0

5.3

45

E 10

20

76

46.8

10.3

45

E 15

20

88

48.8

15.3

45

E 20

20

96

46.6

20.0

45

E 25

20

109

48.3

25.6

45

E 30

15+15

109

40.6

29.8

45

Z

OD (mm)

SD (mm)

WT (mm)

R1=R2 (mm)

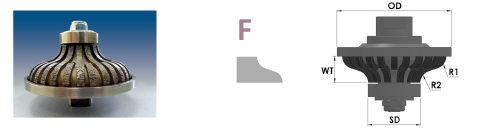

F 20

12+12

88

40.6

20.3

10

F 30

16+16

109

40.6

30.3

15

Z

OD (mm)

SD (mm)

WT (mm)

L (mm)

R (mm)

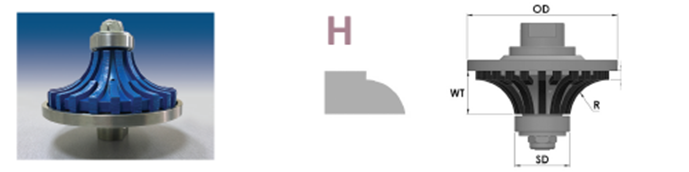

H 20 - L5

18

88

39

20.0

5

15.0

H 20 - L8

12+12

63

40

20.0

8

15.0

H 30

12+12

96

35

28.0

6

25.0

H 40

12+12

109

35

39.3

9

30.5

Z

OD (mm)

SD (mm)

WT (mm)

R1 (mm)

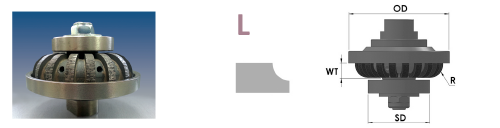

L 5

24

76

56.5

5.5

5

L 10

20

76

47.0

10.0

10

L 15

20

88

48.3

15.0

15

L 20

20

96

46.6

19.9

20

L 25

20

109

50.6

25.1

25

L 30

18

109

40.6

30.1

30

Z

OD (mm)

SD (mm)

WT (mm)

L (mm)

R1=R2 (mm)

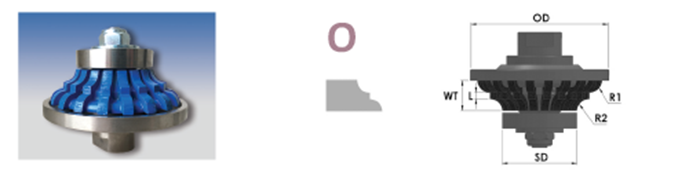

O 20

20

88

47.4

19.5

4

8

Z

OD (mm)

SD (mm)

WT (mm)

R1=R2=R3 (mm)

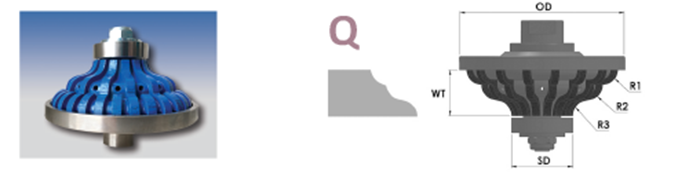

Q 30

16

109

40.4

30.5

10

Z

OD (mm)

SD (mm)

WT (mm)

L (mm)

R1=R2 (mm)

T 20

20+20

82

52.5

22.2

10.2

5.5

T 30

20+20

82

52.5

31.5

14.2

8.5

T 40

20+20

82

52.5

41.5

24.2

8.5

Z

OD (mm)

SD (mm)

WT (mm)

R1 (mm)

R2 (mm)

V 20

24+24

96

60.3

21.5

10.5

10.5

V 30

24+24

96

52.3

31.5

15.5

15.5

V 40

24+24

102

50.5

41.5

20.5

20.5

V 67

18+18

131

52.0

67.5

33.5

33.5

Z

OD (mm)

L (mm)

T (mm)

H (mm)

R (mm)

Fluting R3

15

88

15, 20, 25

6

4

3

Fluting R4

15

88

15, 20, 25

8

5

4

Fluting R5

12

88

12, 17, 22

10

6

5

Z

OD (mm)

L (mm)

T (mm)

H (mm)

6

88

12

8

8
